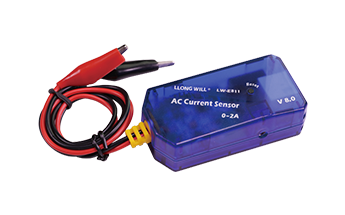

The AC current sensor is used to measure the effective value(i. e. root mean square, RMS) of AC current, and supports three working modes: wired communication with data logger, wireless communication and independent data display.

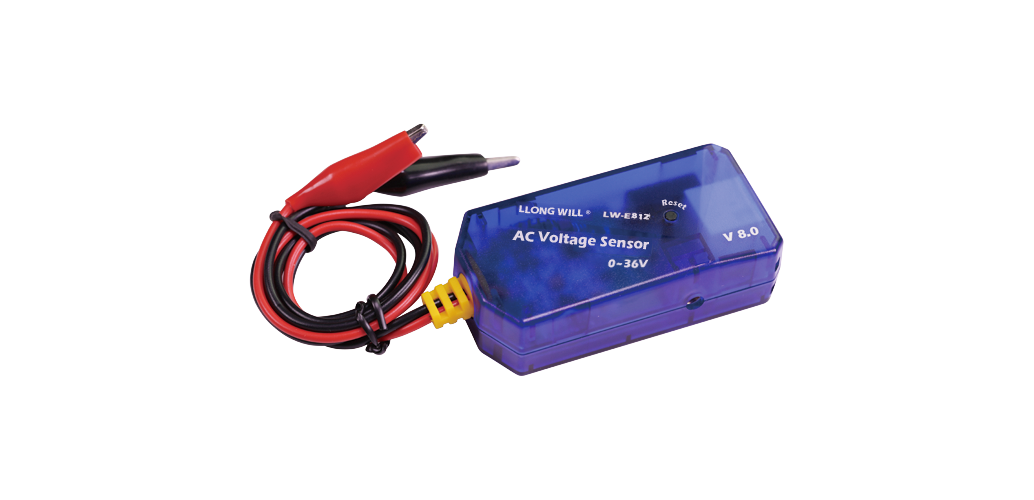

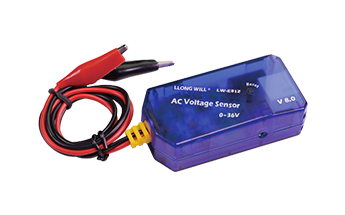

The AC voltage sensor is used to measure the effective value of AC voltage, and supports three working modes: wired communication with data logger, wireless communication and independent data display.

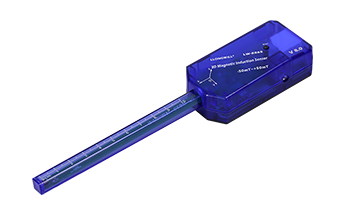

The 3D magnetic induction sensor is used to measure the magnetic induction intensity in a certain place, and it needs to be measured after the reading is stable.

The vector sum of the three-dimensional components is the absolute value of the magnetic induction intensity of the measurement point.

Independent unit for sensor data display Module

Highlighted display screen

Auto-identify the sensor

Real-time data display

Rechargeable Lithium battery

Support data input into computer

Used with wireless interface

Hot-plug with sensor

With built-in lithium battery

Hot-plug with sensor

With built-in lithium battery

Establish the communication between the sensor and the mobile terminal by Bluetooth

Through scanning the QR code, the wireless communication with Android/iOS platform software can be built.

Used for some special kinds of V8.0 sensors which can be connected to sensor data display module/wireless transmitter module.

Modular structure

Hot-plug with Data Logger

4 sensor ports

Wired connection with sensors by cables

Modular structure

Hot-plug with Data Logger

4 sensor ports

Wireless connection with sensors by Sensor Data Transmitter

It can be connected to any kind of sensor, connected to the computer through MicroUSB cable, and compatible with computer software.

Wirelessly connect a wireless transmitter module with sensors or intelligent equipment with wireless function.

Measure the electrostatic charge.

Display the data directly by LCD.

Data logger not required

Measure and display the sound wave form and frequency

Support 4 sound sensors work simultaneously

8.9~12.1 inch touch-screen LCD

over 1G memory

Selectable hard disk capacity

Built-in WLAN card

Supporting multiple operating systems

Super-long battery life of 4-5 hours

Full transplant of PC software

Built-in data logger

Operation of stylus

High sampling rate
